What is a 12V Solar Panel System?
A 12V solar panel system is a self-contained power generation setup designed to operate on a low-voltage direct current (DC) of twelve volts. These systems harness energy from sunlight via solar panels, converting it into usable electricity. This electricity can then be utilized directly, stored in batteries, or converted to alternating current (AC) using an inverter.
Essentially, a 12V system provides a convenient and accessible entry point into solar power, particularly for smaller-scale applications. The user manual accompanying your 12V/24V Solar Panel Wiring Diagram is designed to familiarize you with its features and benefits. It’s a readily available power source, ideal for situations where grid electricity is unavailable or unreliable. Your new diagram ensures a streamlined installation process, making solar energy accessible and efficient.
Common Applications for 12V Systems

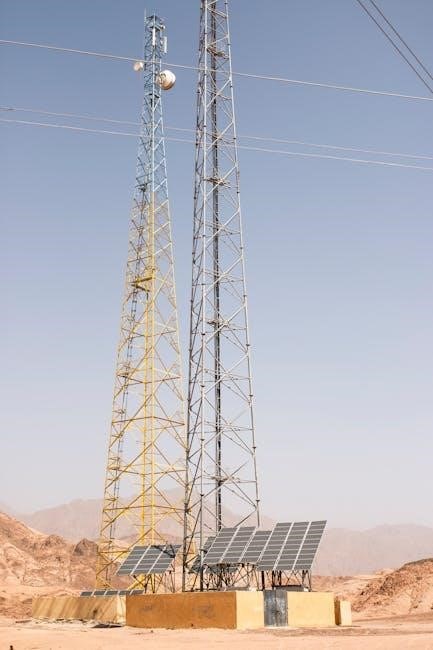

12V solar panel systems are incredibly versatile, powering a wide array of applications. They are frequently used for powering small electronic devices, lighting solutions in sheds or garages, and charging mobile devices. Recreational vehicles (RVs), boats, and cabins often utilize these systems for independent power. Furthermore, 12V setups are ideal for remote monitoring systems, security cameras, and powering electric fences.
The accompanying user manual for your Solar Panel Wiring Diagram 12V/24V will guide you through adapting the system to your specific needs. These systems are also popular for off-grid living, providing essential power for basic appliances. With a properly installed system, as detailed in the diagram, you can enjoy reliable and sustainable energy wherever you are, enhancing convenience and independence.

Components of a 12V Solar Panel System
Essential components include solar panels, a charge controller, batteries for storage, and optionally, an inverter for AC power conversion, as shown in the diagram.

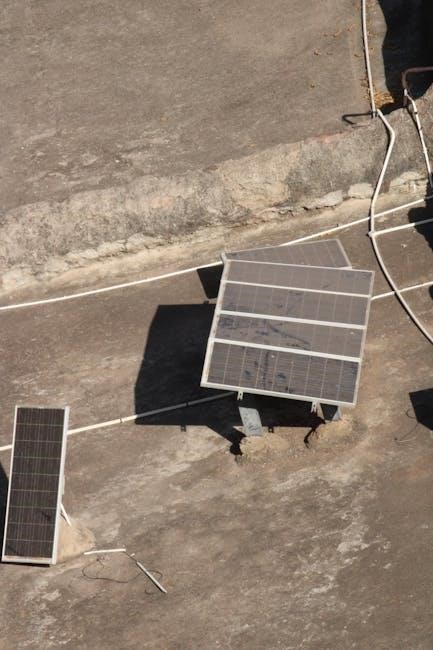

Solar Panels: Types and Specifications

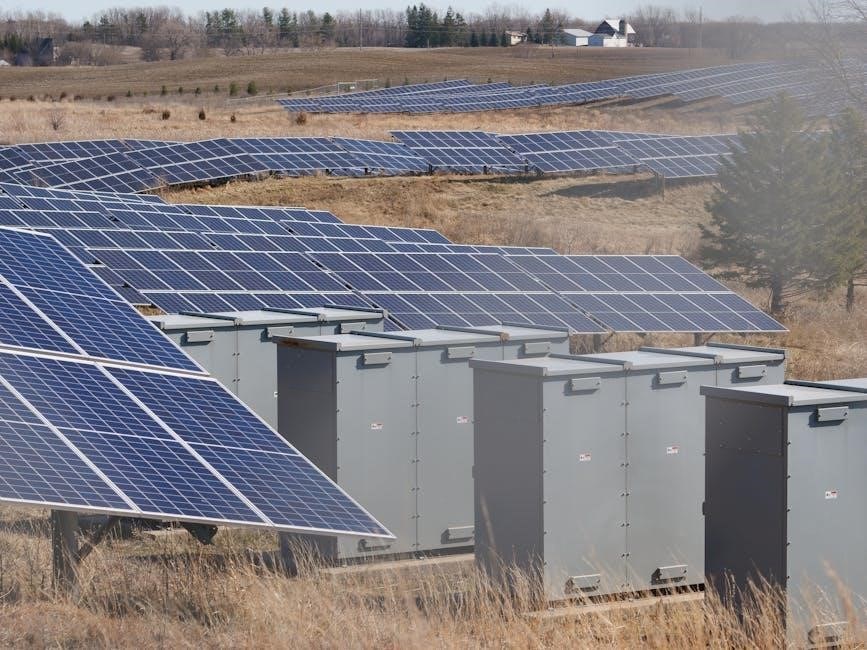

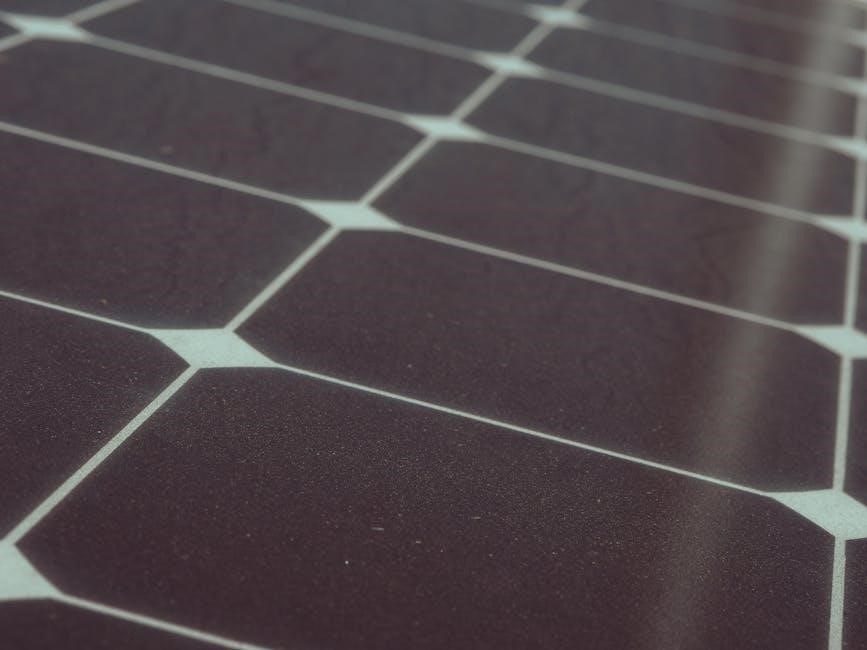

Solar panels are the core energy generators, available in various types like monocrystalline, polycrystalline, and thin-film, each with differing efficiencies and costs. Monocrystalline panels, known for their high efficiency, are ideal where space is limited, while polycrystalline options offer a balance between performance and affordability. Thin-film panels are flexible and lightweight, suitable for unconventional surfaces.
Key specifications to consider include wattage (power output under standard test conditions), voltage (typically around 18-20V for 12V systems), and current. Understanding these specifications is crucial when designing your system and selecting compatible components, as detailed in the wiring diagram. Panel size and weight also influence installation considerations, ensuring structural integrity and ease of mounting. Proper panel selection maximizes energy harvest and system longevity.
Charge Controller: PWM vs. MPPT
Charge controllers regulate voltage from the solar panels to prevent overcharging the battery, extending its lifespan. Two primary types exist: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT). PWM controllers are simpler and less expensive, suitable for smaller systems where panel voltage closely matches battery voltage.
MPPT controllers, however, are significantly more efficient, especially in colder climates or when using higher voltage panels. They actively track the maximum power point of the solar array, converting excess voltage into current, resulting in up to 30% more power harvested. Referencing your 12V wiring diagram is essential for correct MPPT controller configuration. Choosing the right controller optimizes system performance and protects your valuable battery investment.
Batteries: Deep Cycle Lead-Acid, AGM, Lithium
Batteries store energy generated by your solar panels for use when sunlight isn’t available. Deep cycle batteries are designed for repeated charging and discharging, unlike starting batteries. Three common types are lead-acid, Absorbed Glass Mat (AGM), and lithium-ion.
Lead-acid batteries are the most affordable but require regular maintenance, like checking water levels. AGM batteries are sealed and maintenance-free, offering improved performance and lifespan. Lithium batteries are the most expensive but provide the highest energy density, longest lifespan, and are significantly lighter. Your 12V solar panel wiring diagram will specify compatible battery voltages and charging parameters. Selecting the right battery type is crucial for system reliability and longevity.
Inverter (Optional): DC to AC Conversion
An inverter converts the Direct Current (DC) power stored in your batteries into Alternating Current (AC) power, which is used by most household appliances. It’s an optional component, only needed if you intend to power AC devices with your 12V solar system. Inverters come in various sizes, measured in watts, and should be appropriately sized to handle the total wattage of the appliances you plan to run simultaneously.
Your 12V solar panel wiring diagram will illustrate how to connect the inverter to the battery bank, ensuring correct polarity and fusing for safety. Consider the inverter’s efficiency rating when calculating power losses. Pure sine wave inverters provide cleaner power, suitable for sensitive electronics, while modified sine wave inverters are more affordable but may not work with all devices.

Understanding Solar Panel Wiring Configurations
Wiring configurations are crucial for optimizing your 12V system’s performance, impacting voltage and amperage levels to match your load requirements effectively.
Series Wiring: Increasing Voltage
Series wiring is a fundamental technique for boosting the overall voltage of your 12V solar panel system. When panels are connected in series, the positive terminal of one panel connects to the negative terminal of the next, creating a chain. This configuration adds the voltages of each individual panel together, while the amperage remains constant.
For example, connecting two 12V panels in series will result in a 24V system. This is particularly useful when your charge controller or inverter requires a higher voltage input. However, it’s vital to ensure all panels in the series have similar voltage and amperage ratings to prevent performance imbalances and potential damage. Careful planning and adherence to the wiring diagram are essential for a safe and efficient series connection.
Always double-check polarity before connecting!
Parallel Wiring: Increasing Amperage
Parallel wiring offers a different approach to expanding your 12V solar panel system’s capabilities, focusing on increasing the available amperage. In a parallel connection, all positive terminals of the panels are connected together, and all negative terminals are similarly connected. This configuration adds the amperages of each panel, while the voltage remains constant at the individual panel’s rating – typically 12V.

This is beneficial when your load requires a higher current draw than a single panel can provide. Like series wiring, using panels with similar voltage and amperage specifications is crucial for optimal performance. Parallel wiring is often used to supplement existing systems or to power larger loads. Always verify correct polarity before making connections to avoid potential damage or system failure.
Safety first, always!
Series-Parallel Wiring: Balancing Voltage and Amperage
Series-parallel wiring represents a sophisticated method for configuring 12V solar panel systems, offering a balance between increased voltage and amperage. This technique combines the benefits of both series and parallel connections. Initially, panels are wired in series to achieve the desired voltage. Then, these series strings are connected in parallel to boost the overall amperage output.
This approach is particularly useful when dealing with higher voltage loads or when needing to cover significant power demands. Careful planning is essential, ensuring each series string has identical panel configurations. Maintaining balance across all strings is critical for maximizing efficiency and preventing potential issues. Always double-check polarity and use appropriate fusing for safety and system protection.
Proper planning is key!

12V Solar Panel Wiring Diagram Basics
Understanding symbols and notations within a 12V solar panel wiring diagram is crucial for safe and effective installation, operation, and maintenance procedures.
Essential Symbols and Notations
Decoding a 12V solar panel wiring diagram relies heavily on recognizing standard electrical symbols. The solar panel itself is typically represented by a rectangle with a sun symbol inside, indicating its energy-generating function. Wires are shown as straight lines, with breaks signifying connections; a solid line denotes a continuous conductor.
Batteries are depicted as a series of parallel plates, positive (+) and negative (-) terminals clearly marked. A charge controller, vital for regulating power flow, is often symbolized by a rectangle containing a diode or a similar regulating component. The inverter, if present for AC conversion, appears as a rectangle with a sine wave symbol.
Understanding notations is equally important. Voltage (V) and amperage (A) are commonly indicated near components, specifying their electrical characteristics. Polarity (+/-) must be meticulously observed during connections. Diagrams may also include fuse symbols, representing crucial safety devices, and grounding symbols, ensuring electrical safety. Correct interpretation of these symbols and notations is paramount for a successful and safe installation.
Safety Precautions for Wiring

Prioritizing safety is paramount when working with 12V solar panel systems. Always disconnect the solar panels and battery before commencing any wiring work to prevent electrical shock. Utilize insulated tools specifically designed for electrical applications, minimizing the risk of short circuits and personal injury.
Proper grounding is crucial; ensure all metallic components are adequately grounded to dissipate stray currents. Never work with damaged wiring or components, replacing them immediately to avoid potential hazards. Be mindful of polarity – incorrect connections can damage equipment and create safety risks.
Work in a dry environment, avoiding moisture to prevent electrical conductivity. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Consult the user manual for specific safety guidelines related to your equipment. Following these precautions ensures a safe and reliable solar panel installation.

Step-by-Step Wiring Guide for a Basic 12V System
This guide provides a clear, step-by-step process for installing your 12V system, ensuring proper connection of panels, controllers, batteries, and loads.
Connecting Solar Panels to the Charge Controller
Establishing a secure connection between your solar panels and the charge controller is paramount for efficient energy transfer and system longevity. Begin by carefully identifying the positive (+) and negative (-) terminals on both the solar panel and the charge controller – polarity is crucial!
Using appropriately sized wiring (consult your system’s specifications), connect the positive wire from the solar panel to the positive input terminal on the charge controller, and repeat this process for the negative wires. Ensure all connections are tight and secure, preventing loose wires that could cause resistance and reduce performance.
Double-check your wiring against the 12V solar panel wiring diagram PDF to confirm accuracy before proceeding. A properly connected solar panel array will deliver consistent power to the charge controller, initiating the battery charging process and powering your connected loads effectively.
Connecting the Charge Controller to the Battery
After successfully connecting the solar panels, the next critical step involves linking the charge controller to your 12V battery bank. Again, meticulous attention to polarity is essential – incorrect wiring can severely damage both the charge controller and the battery.
Locate the battery terminals on the charge controller, clearly marked with positive (+) and negative (-) symbols. Using appropriately gauged wiring, connect the positive output terminal of the charge controller to the positive terminal of the battery, and similarly connect the negative terminals.
Refer to your 12V solar panel wiring diagram PDF to verify the correct connections before finalizing. A secure and properly polarized connection ensures efficient battery charging and prevents potential hazards, safeguarding your investment and ensuring reliable power storage.
Connecting Loads to the Battery (or Inverter)
With the charge controller securely connected to the battery, you can now power your 12V loads. For direct 12V DC appliances, connect them directly to the battery terminals, observing correct polarity. However, for standard AC appliances, an inverter is necessary to convert the DC power from the battery to AC.
Connect the inverter to the battery, again ensuring correct polarity. Once the inverter is connected, you can plug your AC appliances into the inverter’s outlets. Always consult your 12V solar panel wiring diagram PDF to understand the system’s power capacity and avoid overloading the inverter or battery.

Proper load management extends battery life and ensures consistent power delivery for all your connected devices, maximizing the efficiency of your solar setup.

Troubleshooting Common Wiring Issues
Referencing your 12V solar panel wiring diagram PDF is crucial for diagnosing problems like low voltage or reverse polarity, ensuring safe and efficient operation.
Low Voltage Output
Diagnosing low voltage in your 12V system, using your 12 volt solar panel wiring diagram PDF, begins with a systematic check of all connections. Ensure every wire is securely fastened to its terminal, preventing resistance that diminishes power transfer.

Inspect the solar panels themselves for any physical damage – cracks, shading, or dirt accumulation significantly reduce output. Verify the charge controller is functioning correctly; a faulty controller can restrict voltage even with optimal panel performance.
Battery health is paramount; a depleted or failing battery will naturally exhibit low voltage. Test the battery’s state of charge and consider load demands. Finally, confirm wiring gauge is appropriate for the current, as undersized wires create voltage drop over distance.
Reverse Polarity Protection
Utilizing your 12 volt solar panel wiring diagram PDF, understanding reverse polarity protection is crucial for system longevity. Incorrect wiring – positive to negative – can severely damage components, especially the charge controller and battery.
Modern charge controllers often incorporate reverse polarity protection, but relying solely on this feature is unwise. Always double-check wiring connections before applying power, meticulously verifying positive and negative terminals.
If reverse polarity is suspected, immediately disconnect the power source. Inspect the charge controller for any visible damage; even if seemingly functional, internal components may be compromised. A blown fuse is a common indicator of reversed polarity. Prioritize correct wiring to prevent costly repairs and ensure safe operation.
